公司的核心產品—各種型號的連續逆流（超聲）提取機，它凝聚了超聲提取、動態逆流提取、連續自動排渣過濾、連續動態循環蒸發濃縮、殘渣殘留溶劑回收、尾氣殘留溶劑回收、特種密封等15項專利和關鍵技術，實現了全程密封條件下的連續化運行、自動化控制，在低溫或常溫條件下實現快速提取、濃縮，是一套高效、節能、安全、環保的生物技術裝備，廣泛應用于從天然植物中生產制備中成藥、天然色素、香精香料、食品添加劑、保健品、化妝品、飼料添加劑、植物農藥等產品，特別適用于大規模使用有機溶劑提取熱敏性物質。
Continuous Counter-flow Ultrasonic Extraction Complete Machinery, as core products, has agglomerated of 15 patents and know-how technologies, such as ultrasonic extraction, dynamic counter-flow extraction, continuous filtration with automatic outlet of cake, low-temperature evaporation concentration, high efficient recovery of organic solvent, specific mechanic seal etc. The machinery realizes continuous production and automatic control under seal condition, and realizing fast extraction production under low and normal temperature through the whole process. It is wildly used for extracting and producing Chinese Traditional Medicine, natural colors, flavors and fragrances, food additives, health products, cosmetics, feed additive, plant pesticides etc from various plants. It is used most suitable for extracting and producing in large scale heat sensitive extracts by organic solvent.
Continuous Counter-flow Ultrasonic Extraction Complete Machinery, as core products, has agglomerated of 15 patents and know-how technologies, such as ultrasonic extraction, dynamic counter-flow extraction, continuous filtration with automatic outlet of cake, low-temperature evaporation concentration, high efficient recovery of organic solvent, specific mechanic seal etc. The machinery realizes continuous production and automatic control under seal condition, and realizing fast extraction production under low and normal temperature through the whole process. It is wildly used for extracting and producing Chinese Traditional Medicine, natural colors, flavors and fragrances, food additives, health products, cosmetics, feed additive, plant pesticides etc from various plants. It is used most suitable for extracting and producing in large scale heat sensitive extracts by organic solvent.
產品展示
|
產品屬性
| 產品名稱： | 套管式換熱器 |
| 產品編號： |
產品描述
1.產品簡介
套管式換熱器是公司常規產品之一，主要用于動態循環蒸發濃縮器中加熱濃縮處理介質，液-液之間逆流熱交換，效率高，無糊層，易于清洗。
本公司生產的套管式換熱器，有加熱面積可調式和不可調式兩種型式。
本公司生產的套管式換熱器，完全按照GMP的規范要求設計、生產制造。

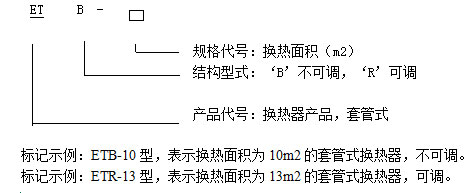

2.型號代號：
3.型號規格

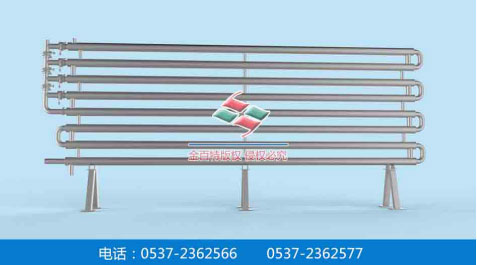

3.1.不可調套管式換熱器
特點：換熱面積固定不可調。
型號規格一覽表

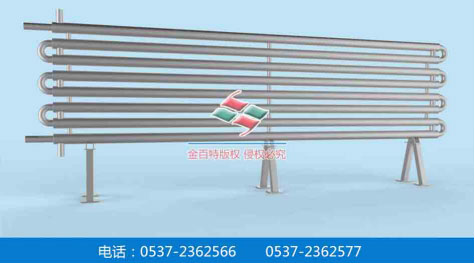

3.2.可調套管式換熱器
特點：換熱面積可調。
型號規格一覽表
3.3.上述任一產品，都可根據用戶要求設計定制換熱面積，以及進出口管徑等。
4.配置
4.1.標準配置
管件、管口
保溫層
4.2.定制配置
在線溫度計
5.材質
材質有sus30408、sus316等選擇，也可根據客戶的要求定做特種材質。
6.表面處理

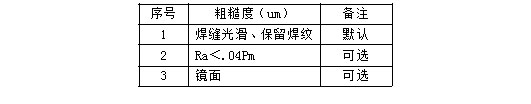

6.1.1.內表面粗糙度有下列選擇

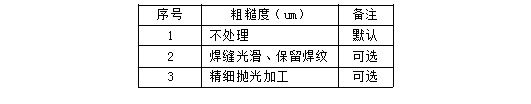

6.1.2.外表面粗糙度有下列選擇
